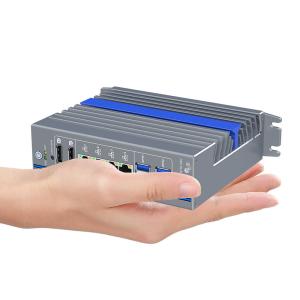

Product Description:
the Core Industrial PC is a highly capable and reliable computing solution that is perfect for industrial and commercial use. With its high-performance processor, support for 4K displays, and M.2 slot for additional storage, it has everything you need to run demanding applications and store large amounts of data. Whether you're a business owner, IT professional, or creative professional, this PC is an excellent choice that will deliver exceptional performance and reliability.
Technical Parameters:
| Parameter |
|
|
Storage |
| Processor |
Intel i5-1235U (10 core 12 threads, Turbo. 4.4 GHz)
Intel i7-1255U (10 core 12 threads,Turbo. 4.7 GHz)
|
|
M.2 |
1x M.2 2280 M-key slot (support SATA SSD & NVME SSD PCEIE 1X ) |
| Chipset |
Alder Lake-U |
|
MSATA |
1xMSATA |
| Memory |
2xDDR5 4800MHz SODIMM, Max 64 GB |
|
Expansion |
| Graphics Card |
|
Mini PCIE |
1xfull-length Mini PCIe slot (support PCIE & USB2.0 signal, 4G/WIFI/Bluetooth optional), internal Nano-SIM card slot |
| Graphics |
Intel(R) Iris(R) Xe Graphics |
|
|
|
| Display |
2xDP(Resolution 7680 x 4320 @60Hz) |
|
Dimension |
| |
|
|
Size |
205 * 146 * 50 mm |
| Network |
|
Weight |
1.54 kg |
| Lan Port |
3xIntel i210-AT, 1xIntel i219-LM 1000M Ethernet |
|
Installation |
Wall-mounted (standard included), Din rail (optional), Desktop (default support) |
| I/O |
|
Environment |
| USB |
4xUSB 3.0 |
|
Temperature |
-20℃~+60℃, Surface air flow |
| COM |
Standard None, Optional 2xCOM (COM1/2 RS232/485) |
|
Humidity |
5%~95% Non-condensing state |
| Audio |
/ |
|
Other Function |
Power-on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply |
|
|
|
| Power Supply |
1x4Pin Phoenix terminal power supply,
DC 12V~24V wide voltage input
|
|
Application |
Industrial Automation, Medical, Logistics &Transportation, Warehousing, e-education and other fields. |
Support and Services:
The Core Industrial PC product comes with comprehensive technical support and services to ensure its optimal performance and reliability. Our team of experienced technicians is available to assist with any questions or issues related to the setup, configuration, and operation of the product.
